Data sheet
Omron industrial relay, 24 V DC, 2 changeover contact
Item number:
G2R2SND24VDC

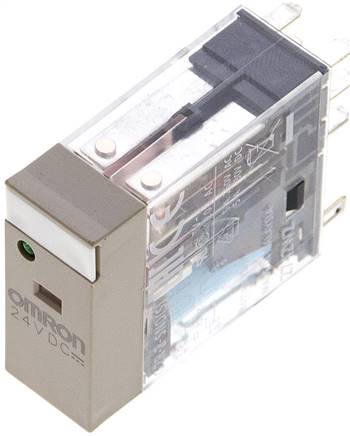

Example illustration
Item description
Switching voltage max.:
400 V AC, 125 V DC
Nominal load:
10 A (2 changeover contacts: 5 A per pole) at 250 V AC, 30 V DC (Ohmic load)
Properties
| Number of changeover contacts [PCE] | 2 |
| Control voltage | 24 V DC |
| Equipment | LED display, fly back diodes |
| Socket for DIN rail assembly (DIN width 16mm) | P2RF08E |
Further information:
| Weight | 22 g / pcs |
| GTIN | 4050571312213 |
| Customs duty number | 85364900 |
| Manufacturer | Omron |
Drawing:
Drawing: 2 changeover contacts
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number G2R2SND24VDC.
