Data sheet
MULTIFIX Micro oil-fog lubricator, G 1/4", Multifix 1, Metal bowl with sighting tube
{{ $t('shop.all.artikelnummer') }}:
M OL 14 M

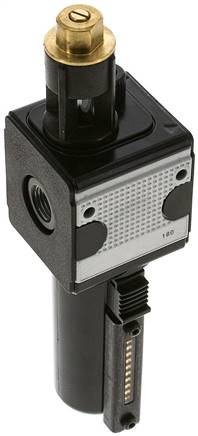

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), seals: NBR, oil tank: polycarbonate
Temperature range:
-10 to +60 °C
Media:
Compressed air, neutral gases
Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.
Input pressure:
max. 16 bar (with metal bowl max. 20 bar*)
Oil metering at 1000 l/min:
approx. 10 - 20 drops/min
Lubricator reaction limit (at 6 bar):
Model series 1: 26 l/min, model series 2: 60 l/min
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU
Optional:
Version with protective cage -S, Version with metal bowl* and inspection tube -M
Advantages:
•very fine oil mist
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Further information:
| {{ $t('shop.all.gewicht') }} | 600 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571495848 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84248970 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number M OL 14 M.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
