Data sheet

MULTIFIX 3/2-way solenoid valve (NC), G 1", 24 V DC
{{ $t('shop.all.artikelnummer') }}:
M CL 10 24V=

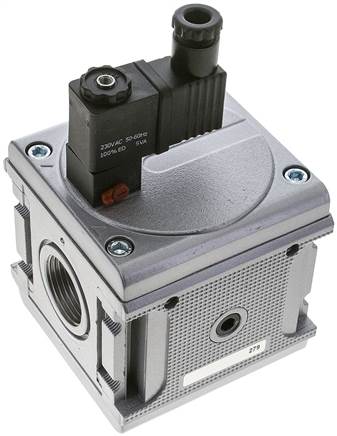

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), cover: POM, diaphragms and seals: NBR
Media:
Oiled and unoiled compressed air, neutral gasses
Temperature range:
-10 to +60 °C
Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.
Input pressure:
2 to 10 bar
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Power consumption:
3 W / 5 VA (series 4: 2.5 W / 3 VA)
Protection class:
IP 65 (plug size 1, series 4: plug size 0C)
Scope of delivery:
Valve including silencer in exhaust thread
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version 3/2-way solenoid valve (NC)
Model series Multifix 5
Thread G 1"
Exhaust thread G 1/2"
Electrical controls 24 V DC
flow [l/min] 14000
H [mm] 200
H1 [mm] 96
L [mm] 100
Mounting brackets W 5
Coupling kit KP 5
Spare solenoid coil M CL 24V=
Further information:
{{ $t('shop.all.gewicht') }} 1,9 kg / pcs
{{ $t('shop.all.gtin') }} 4050571482695
{{ $t('shop.display.artikel.zollwarennummer') }} 84812090
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number M CL 10 24V=.
