Data sheet
Round cylinder, piston 32 mm, stroke 50 mm
{{ $t('shop.all.artikelnummer') }}:
DSWPVM 32/50

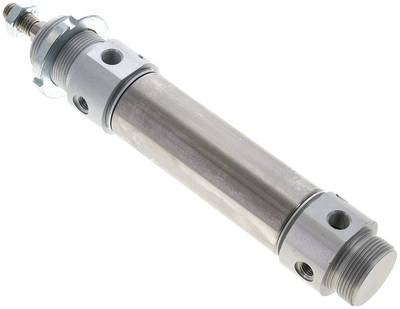

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Head and foot: anodized aluminium, cylinder tube: 1.4301, piston rod: hard chromium plated steel, seal: NBR / PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D in combination with fastening D1, C in combination with fastening C1
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Piston diameter [mm] | 32 |
| Stroke [mm] | 50 |
| Version | adjustable end position damping |
| A (piston rod thread) | M 10 |
| B (fastening thread) | M 30x1,5 |
| G (compressed air port) | G 1/8" |
| B1 [mm] | 7 |
| B2 [mm] | 35 |
| D1 [mm] | 45 |
| D2 [mm] | 12 |
| D4 [mm] | 38 |
| D5 [mm] | 30 |
| D6 [mm] | 33,6 |
| D7 | M 8x1 |
| F [mm] | 20 |
| K [mm] | 38 |
| L1 [mm] | 148 |
| L2 [mm] | 47 |
| L3 [mm] | 78 |
| L4 [mm] | 30 |
| L5 [mm] | 14 |
| CH [mm] | 10 |
Further information:
| {{ $t('shop.all.gewicht') }} | 500 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571276157 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84123100 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Airtec (WEEE DE94696834 ) |
Figure
Drawing:
Drawing: Round cylinder
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number DSWPVM 32/50.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
