Data sheet
Straight compression ring fitting R 1/4"-16 (M22x1,5)mm, brass
{{ $t('shop.all.artikelnummer') }}:
KGE 1416 KON MS

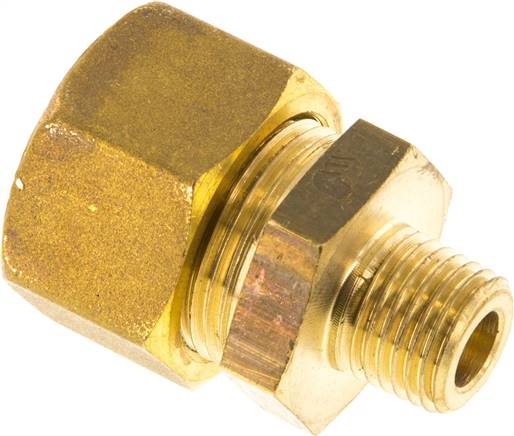

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Temperature range:
-60°C up to max. +300°C (with seal: -20°C up to max. +80°C)
Recommended raw materials:
Copper, polyamide (with reinforced sleeve)
Note:
The brass compression ring screw connections cannot be combined with the cutting ring pipe screw connectors ISO 8434-1 (DIN 2353). When using soft copper tube a correction factor of 0.65 must be used (pressure x 0.65). When using polyamide tube the operating pressure of the tube applies.
Materials:
brass
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Pipe diameter (outer) [mm] | 16 (M22x1,5) |
| Screw-in thread | R 1/4" |
| Operating pressure with hard copper tube [bar] | 76 |
| Temperature range [°C] | -60 to +300 |
Further information:
| {{ $t('shop.all.gewicht') }} | 90 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571404703 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 74122000 |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KGE 1416 KON MS.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
