Data sheet
Brass ball valve, lockable, Rp 1-1/2", -0,98 to 40 bar
{{ $t('shop.all.artikelnummer') }}:
KH 112 KEY

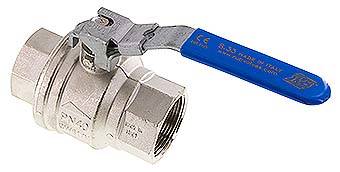

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated brass, ball: hard chromium plated brass, seal: PTFE, lever: galvanised steel, manufactured silicone-free
Temperature range:
-40 to +170 °C (dependent on operating pressure), fuels -20°C up to max. +60°C
Media:
Water, compressed air, vacuum (max. -0.98 bar), oils, fuels (5 bar max.), heating oil
Advantages:
•Hand lever can be bolted with a lock - please use VHS 40
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Thread G | Rp 1-1/2" |
| DN [mm] | 40 |
| L [mm] | 117 |
| PN [bar] | -0.98 to 40 |
| H [mm] | 89 |
| R [mm] | 157 |
| Suitable padlock | VHS 40 |
Further information:
| {{ $t('shop.all.gewicht') }} | 1,6 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571822804 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84818081 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: 2-part ball valve, full bore, lockable
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KH 112 KEY.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
