Data sheet

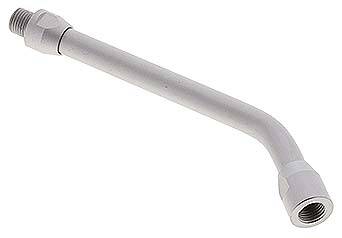

Extension tube, bent, 150 mm without nozzle
{{ $t('shop.all.artikelnummer') }}:
VLR 150 OD
Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Anodized aluminum
Advantages:
•All extensions can be combined with one another to form an even larger length selection. On the input side, they are equipped with a rotating lock in order to position the tube correctly with the nozzle. They can be outfitted with all nozzles with an M 12x1.25 connection thread.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | bent |
| Tube length [mm] | 150 |
| Thread internal | M 12x1,25 |
| Thread external | M 12x1,25 |
Further information:
| {{ $t('shop.all.gewicht') }} | 36 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571827922 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84249080 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number VLR 150 OD.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
