Data sheet

Softy flat nozzle, 29,0, M 12x1,25, Nickel-plated brass
{{ $t('shop.all.artikelnummer') }}:
SOFTY 429 M12

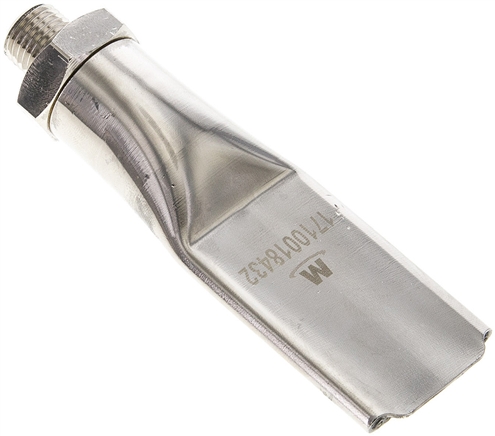

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: galvanised brass or galvanised steel, nozzle insert: Hard PVC
Temperature range:
max. +90 °C
Suitable:
A uniform, laminar air jet with a low noise level characterises these flat nozzles.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material Nickel-plated brass
H [mm] 4,0
B [mm] 29,0
L [mm] 100
Thread external M 12x1,25
Adapter for line installation (G 1/4 MT) RN 14-M12X1,25 MS
Air consumption at 4 bar [l/min] 700
Further information:
{{ $t('shop.all.gewicht') }} 90 g / pcs
{{ $t('shop.all.gtin') }} 4050571828042
{{ $t('shop.display.artikel.zollwarennummer') }} 84679200
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number SOFTY 429 M12.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
