Data sheet

Block-Choke valve, G 1/8", with brass spindle (in aggressive environments)
{{ $t('shop.all.artikelnummer') }}:
DV 18 MS

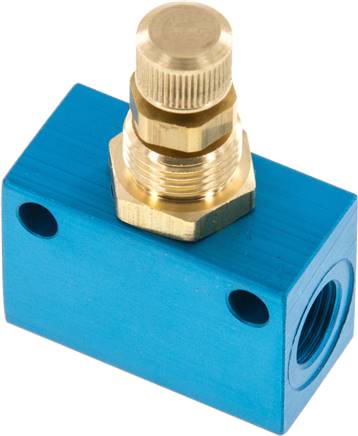

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: Anodised aluminium, brass, seals: NBR
Operating pressure:
1 to 10 bar
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version with brass spindle (in aggressive environments)
function choke valve
Thread G 1/8"
Thread for panel mounting M 12x1
max. sheet thickness [mm] 2,5
Flow regulated & unregulated [l/min] 0 - 125
Length L [mm] 32,5
fastening nut GM 121 MSV
Safety caps DRV SK 18
Temperature range [°C] -20 to +80
Further information:
{{ $t('shop.all.gewicht') }} 48 g / pcs
{{ $t('shop.all.gtin') }} 4050571277109
{{ $t('shop.display.artikel.zollwarennummer') }} 84812090
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number DV 18 MS.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
