Data sheet
Flow control silencer G 1/2", brass, knurled screw
{{ $t('shop.all.artikelnummer') }}:
DS 12 B

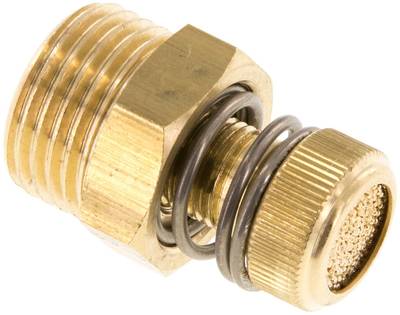

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Construction type:
Cone screw-in nozzle with silencer, inhibition by spring force
Application:
Exhaust air throttling in the exhaust air bore of a control valve.
Advantages:
•Affordable speed controller incl. silencer
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Thread | G 1/2" |
| SW [mm] | 22 |
| L min. [mm] | 26 |
| L max. [mm] | 29 |
Further information:
| {{ $t('shop.all.gewicht') }} | 60 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571274818 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84879090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number DS 12 B.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
