Data sheet
3/2-way (NC/NO) Limit switch with Cam, G 1/8"
{{ $t('shop.all.artikelnummer') }}:
E 18 310

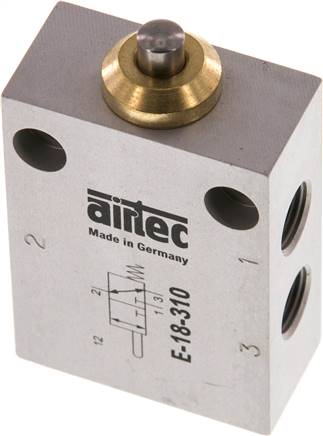

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: anodised aluminium, interior parts: brass, stainless steel and aluminium, seals: NBR, lever: aluminium, plunger and castor: steel and plastic
Temperature range:
-10 to +70 °C
Operating pressure:
0 to 12 bar
Media:
oiled and unoiled filtered compressed air
Pressure input:
Type NC/NO: possible at every connection
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| function | 3/2-way (NC/NO) |
| Actuation | Lug |
| Thread (2x) | G 1/8" |
| Thread exhaust air (1x) | G 1/8" |
| Nominal width [mm] | 4 |
| flow [l/min] | 320 |
| Actuating force at 6 bar [N] | 27 |
Further information:
| {{ $t('shop.all.gewicht') }} | 95 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571277741 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Airtec (WEEE DE94696834 ) |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number E 18 310.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
