Data sheet
Hose nipple M 26x1,5 male thread , 17 to 18mm, zinc plated steel
{{ $t('shop.all.artikelnummer') }}:
850 1600

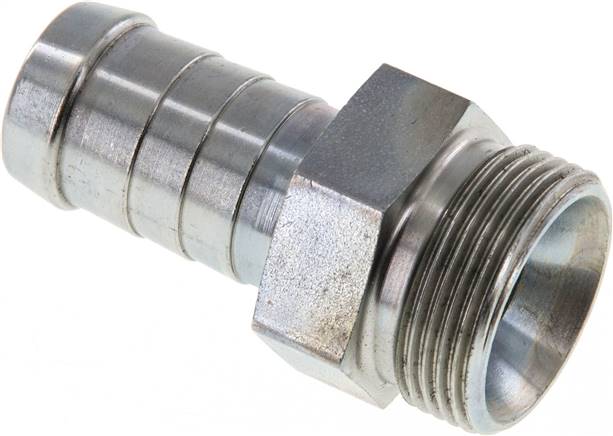

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Zinc plated steel
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| DN [mm] | 16 |
| Hose diameter (inner) [mm] | 17 - 18 |
| Thread | M 26x1,5 |
| Spanner width [mm] | 27 |
Further information:
| {{ $t('shop.all.gewicht') }} | 75 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571210991 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73181535 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number 850 1600.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
