Data sheet
Hose nipple 15 L (M22x1,5), 14 to 15mm, zinc plated steel
{{ $t('shop.all.artikelnummer') }}:
851 1300

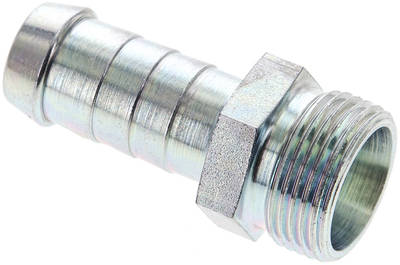

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| Model series | light model series |
| DN [mm] | 13 |
| Hose diameter (inner) [mm] | 14 - 15 |
| for pipe diameter (outer) | 15 L (M22x1,5) |
| Spanner width [mm] | 22 |
Further information:
| {{ $t('shop.all.gewicht') }} | 46 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571211103 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73181535 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number 851 1300.
