Compact cylinders, double acting, piston 25 mm, stroke 25 mm
{{ $t('shop.all.artikelnummer') }}:
NXDA 25/25

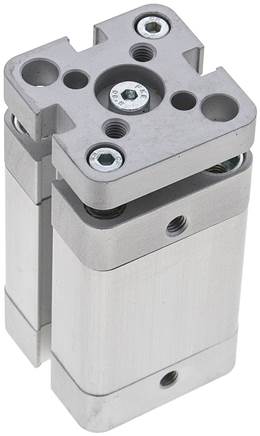

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium, piston rod: 1.4305, seal: PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Piston diameter [mm] 25
Stroke [mm] 25
Version non-rotating piston rod
M (compressed air port) M 5
Repair sets NXD 25 REP
A [mm] 40
B [mm] 10
C [mm] 6
D [mm] 4,2
E M 5
F [mm] 7,5
G [mm] 14
H [mm] 6
I M 5
J [mm] 39,5
K [mm] 5
L [mm] 0
N [mm] 8,0
O [mm] 12,75
P [mm] 26
R [mm] 22
S [mm] 15,6
T [mm] 8
U [mm] 4,5
W [mm] 5,0
X [mm] 1,5
Y [mm] 8
Z [mm] 5,5
Further information:
{{ $t('shop.all.gewicht') }} 260 g / pcs
{{ $t('shop.all.gtin') }} 4050571530365
{{ $t('shop.display.artikel.zollwarennummer') }} 84123100
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} Airtec (WEEE DE94696834 )
Figure
Drawing:
Drawing: Compact cylinder UNITOP, anti-rotation secured piston rod
