Data sheet
TÜV-safety valve G 1/4" (DN8), 3,50 bar, Brass
{{ $t('shop.all.artikelnummer') }}:
SV 14 8-3,5 MS

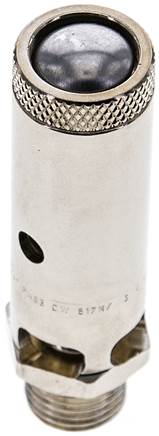

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: brass, 1.4571 or 1.4401, seal: FKM
Temperature range:
-25 to +180 °C
Media:
Compressed air and other non-toxic non-inflammable gases, blown-off freely
Note:
These valves have been type approved and can only be supplied non-adjustable.
Optional:
NPT thread -NPT, fixed pressure between 0,2 and 50 bar, TÜV adjustment certificate
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Brass |
| Thread | G 1/4" |
| reaction pressure [bar] | 3,50 |
| Blow-off capacity* [m³/h] | 105 |
| H [mm] | 55 |
| h [mm] | 10 |
| SW [mm] | 17 |
| Component identification markings | TÜV-SV...-2055.7,5.D/G.0,75 CE0036 3,5 bar |
Further information:
| {{ $t('shop.all.gewicht') }} | 70 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571661496 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84814090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Safety valve
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number SV 14 8-3,5 MS.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
