Data sheet

check valves G 1/8"-4mm, Flow from the hose to the thread, IQS standard
{{ $t('shop.all.artikelnummer') }}:
HBIQS 184 G

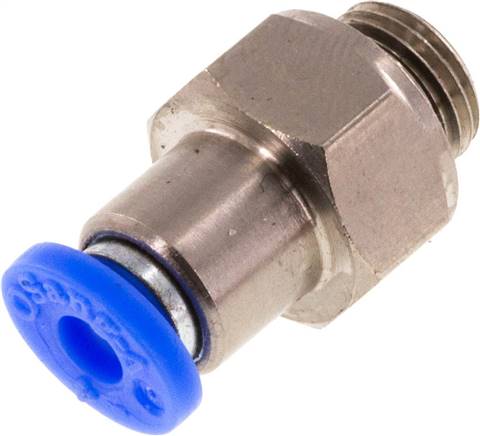

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated brass / PBT / aluminium, valve: aluminium, seal: NBR, holding claws: stainless steel, cartridge: Nickel-plated ZnDC, sleeve PBT (only silicone-free seals and lubricants are used during assembly)
Temperature range:
0 to +60 °C
Operating pressure:
-0,95 to 10 bar
Opening pressure:
max. 0,2 bar
Functional principle:
The check valves prevent a backflow of the airflow
Media:
Compressed air, neutral gases
Advantages:
•Very compact design,
•Reasonable price
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version Flow from the hose to the thread
G G 1/8"
D [mm] 4
Further information:
{{ $t('shop.all.gewicht') }} 16 g / pcs
{{ $t('shop.all.gtin') }} 4050571351632
{{ $t('shop.display.artikel.zollwarennummer') }} 84812090
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} Sang-A
Figure
Drawing:
Drawing: Design of IQS check valves
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number HBIQS 184 G.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
