Data sheet
Elbow stop cock G 1/8"-8mm, IQS standard
{{ $t('shop.all.artikelnummer') }}:
IQSKHW 188 G

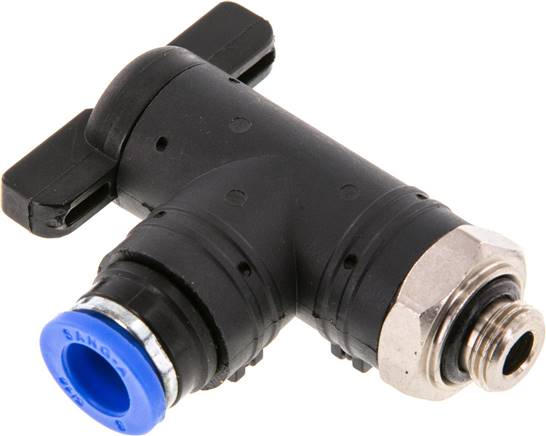

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: Nickel-plated brass / PA 66 / PPS, seal: NBR, holding claw: stainless steel, cartridge: ZnDC nickel-plated, sleeve: PA 66 (only silicone-free seals and lubricants are used during assembly)
Temperature range:
-20 to +80 °C
Operating pressure:
-0,95 to 20 bar
Media:
Compressed air, neutral gases
Functional principle:
The stop cocks shut off the airflow, thus separating the 2 systems from one another. No venting occurs.
Advantages:
•Very compact design
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| G | G 1/8" |
| D [mm] | 8 |
Further information:
| {{ $t('shop.all.gewicht') }} | 36 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571377434 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Sang-A |
Figure
Drawing:
Drawing: Structure of IQS stopcocks
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number IQSKHW 188 G.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
