Data sheet
PAGL-HP3-63-60-G14-RC (1908519) Pressure gauge
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO057728

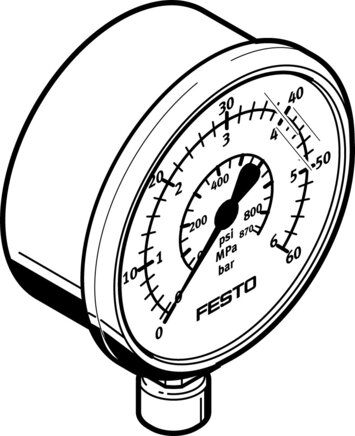

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Display range [bar] [bar] | 0 to 60 |
| Complies to standard | EN 837-1 |
| Nominal size pressure gauge | 63 |
| Construction set up | Pipe spring pressure gauge |
| Fastening type | pipe installation |
| Operating medium |
Inert gases, Neutral liquids |
| Operating pressure [bar] | 0 to 60 |
| Factor alternating strain | 0.66 |
| Measurement precision class | 1,6 |
| Information about operating and control medium | IP65 |
| Bearing temperature [°C] | -40 to 70 |
| Medium temperature [°C] | 0 to 60 |
| ambient temperature [°C] | 0 to 60 |
| Material information | RoHs compliant |
| Connection position | Radial lower |
| Pneumatic connection | G1/4 |
| From medium contacting materials | Brass |
| Stud material | Brass |
| Housing material | Steel |
| Material information | PS |
| Housing colour | silver |
| Information about operating and control medium |
No acetylene, No oxygen |
Further information:
| {{ $t('shop.all.gewicht') }} | 220 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568264307 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 90262040 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number OT-FESTO057728.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
