Data sheet
EAGF-P1-KF-40-150 (3192959) guide unit
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO058673

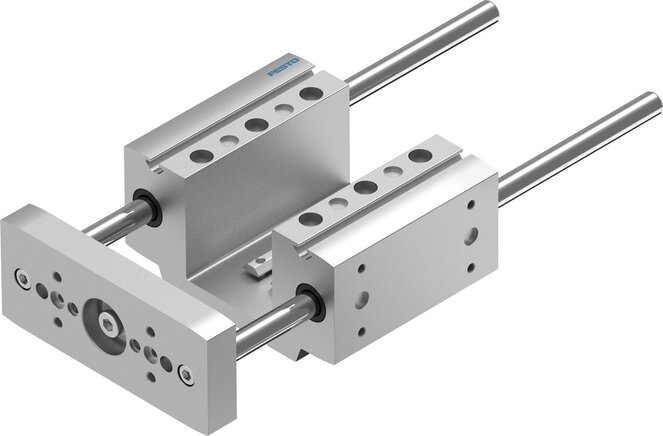

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| size | 40 |
| Stroke [mm] | 150 |
| Reversing play [µm] | 0 |
| installation position | arbitrary |
| Guide | ball guide |
| Construction set up | Guide |
| Corrosion resistant class KBK | 1 - low corrosion stress |
| LABS (PWIS) conformity [°C] | 0 to 50 |
| Max. force Fy [N] | 380 |
| Max. force Fy static [N] | 510 |
| Max. force Fz [N] | 380 |
| Max. force Fz static [N] | 510 |
| Max. torque Mx [Nm] | 20 |
| Max. torque Mx static [Nm] | 27 |
| Max. torque My [Nm] | 15 |
| Max. torque My static [Nm] | 20 |
| Max. torque Mz [Nm] | 15 |
| Max. torque Mz static [Nm] | 20 |
| Pushing force [N] | 6,0 |
| Centre of mass of the moved mass at 0 mm stroke [mm] | 36 |
| Supplement centre of mass of the moved mass per 10 mm stroke [mm] | 4,5 |
| Fastening type | with female thread |
| Material information |
Copper and PTFE-free, RoHs compliant |
| Material information |
Quenched and tempered steel, hard chromium plated |
| Housing material |
Aluminium wrought alloy, anodized |
| Joch plate material |
Aluminium wrought alloy, anodized |
| Max. acceleration [m/s²] | 25 |
| Max. speed [m/s] | 1 |
| Protection category | IP40 |
| Moving mass at 0 mm stroke [g] | 560 |
| Weight supplement per 10 mm stroke [g] | 18 |
| Base weight at 0 mm stroke [g] | 1.910 |
| Supplement moved mass per 10 mm stroke [g] | 18 |
Further information:
| {{ $t('shop.all.gewicht') }} | 2,3 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4052568269036 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84821090 |
| {{ $t('shop.all.hersteller') }} | Festo |
