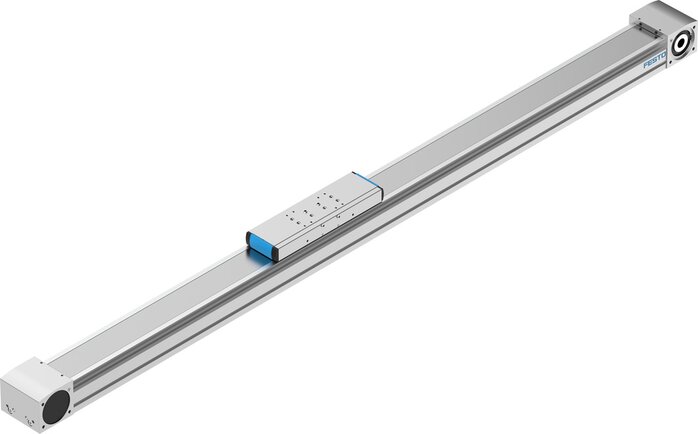

ELGA-TB-KF-120-1500-0H (8041870) Toothed belt axis
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO060637
Vzorčni prikaz
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Actuator pinion effective diameter [mm] | 52,52 |
| Working stroke [mm] | 1.500 |
| size | 120 |
| Stroke reserve [mm] | 0 |
| V-belt bending [%] | 0,210 |
| V-belt separation [mm] | 5 |
| installation position | arbitrary |
| Guide | ball guide |
| Construction set up |
Electro-mechanical linear axis, With V-belt |
| Motor type |
Step motor, Servo motor |
| Measurement principle travel measurement system | Incremental |
| Max. acceleration [m/s²] | 50 |
| Max. speed [m/s] | 5 |
| Repeatability | ±0.08 mm |
| LABS (PWIS) conformity | 100 % |
| Protection category | IP40 |
| ambient temperature [°C] | -10 to 60 |
| Flat torque 2nd grade ly [mm4] | 1.26458e+006 |
| Flat torque 2nd grade lz [mm4] | 4.36579e+006 |
| Max. actuator torque [Nm] | 34,10 |
| Max. force Fy [N] | 5.500 |
| Max. force Fz [N] | 6.890 |
| Max. force Fy total axis [N] | 76,2 |
| Max. force Fz total axis [Nm] | 104 |
| Max. torque My [Nm] | 680 |
| Max. torque Mz [Nm] | 680 |
| Max. feed force Fx [N] | 1.300 |
| Empty run actuator torque [Nm] | 2,8 |
| Torsional moment of inertia to [mm4] | 435.680 |
| Mass inertia JH per metre stroke [kg/cm²] | 2,15 |
| Max. moment Mx total axis [kg/cm²] | 6,90 |
| Max. moment My total axis [kg/cm²] | 40,99 |
| Max. moment Mz total axis [kg/cm²] | 28,91 |
| Feed constant [mm/U] | 165 |
| Lubrication interval running section depending [km] | 1.000 |
| Carriage weight [g] | 4.190 |
| Distance between slide surface and guide centre [g] | 3.240 |
| Weight supplement per 10 mm stroke [g] | 106 |
| Base weight at 0 mm stroke [g] | 15.680 |
| Profile material |
Aluminium wrought alloy, anodized |
| Material information |
LABS containing materials included, RoHs compliant |
| Masking tape material | Rust-free stainless steel band |
| Actuator cover material |
Aluminium wrought alloy, anodized |
| Carriage guide material | Quenched and tempered steel |
| Guide carriage material |
Corrotec coated, Quenched and tempered steel |
| Belt pulley material | High-alloyed stainless steels |
| Carriage material |
Aluminium wrought alloy, anodized |
| V-belt clamping body material | Cast stainless steel |
| V-belt material | Polychloroprene with glas cord and nylon covering |
