Data sheet
Assembly rail MS 40/60, 2 mtr., Zinc plated steel
{{ $t('shop.all.artikelnummer') }}:
FI MS 40/60-2

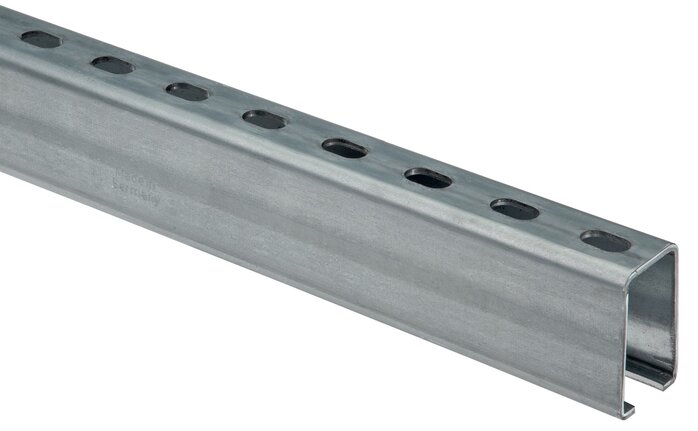

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
Assembly rails to manufacture secure pipe sections and support structures which can be adjusted laterally and vertically. The different hole geometry means multiple options for wall, floor and ceiling installation.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| Profile type | 40/60 |
| Width x height x thickness [mm] | 40 x 60 x 3,00 |
| Slot width [mm] | 17 |
| Length [MTR] | 2 |
| Fpermissible* [N] | 3.537 |
Further information:
| {{ $t('shop.all.gewicht') }} | 7 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571836405 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 72166190 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:

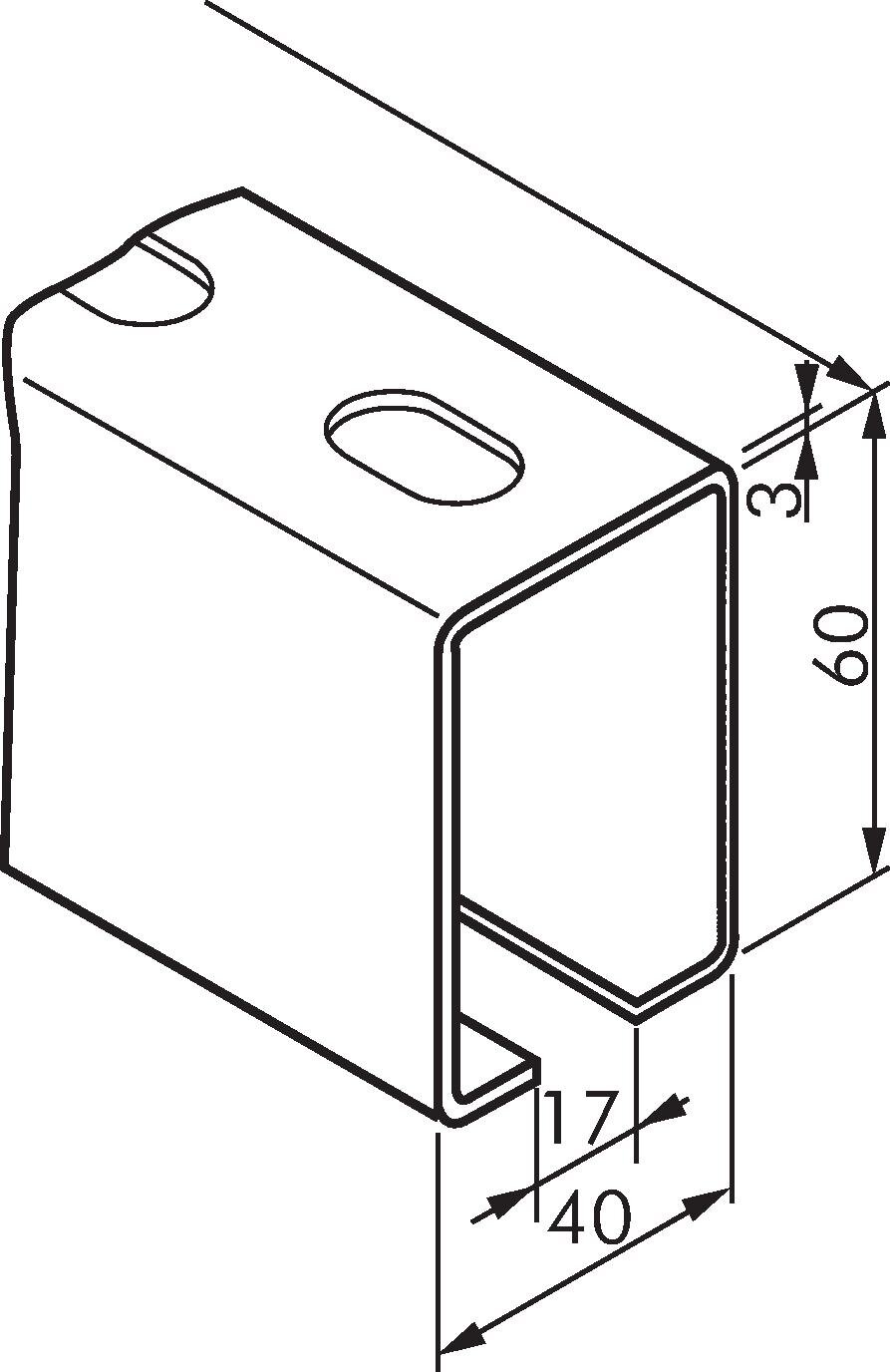

Drawing: Mounting rail (profile type 40/60)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number FI MS 40/60-2.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
