Data sheet
Hydraulic coupling ISO 7241-1B, Sleeve, G 1"(Female thread),Brass
{{ $t('shop.all.artikelnummer') }}:
VAM 10 MS

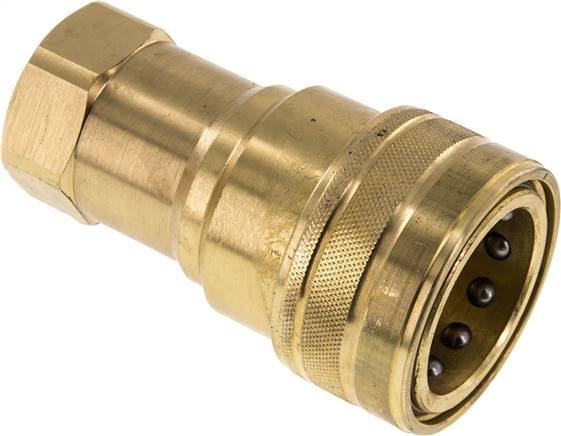

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: brass, springs: 1.4310, seal: O-ring: FKM, support ring: PTFE
Temperature range:
-25 to +200 °C
Optional:
NPT thread -NPT
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Sleeve |
| Thread | G 1" |
| PN [bar] | 180 |
| A [mm] | 37,8 |
| B [mm] | 60 |
| DN (ISO) [mm] | 25 |
| Spare gasket sets (FKM/PTFE) | VAM 10 DI |
Further information:
| {{ $t('shop.all.gewicht') }} | 950 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571716998 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812010 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Sizing for hydraulic couplings ISO 7241-1B
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number VAM 10 MS.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
