Data sheet
FISCHER heavy duty anchor FAZ II Plus 24x60mm, 235mm length, Zinc plated steel
{{ $t('shop.all.artikelnummer') }}:
DUBEL FAZ 24/60

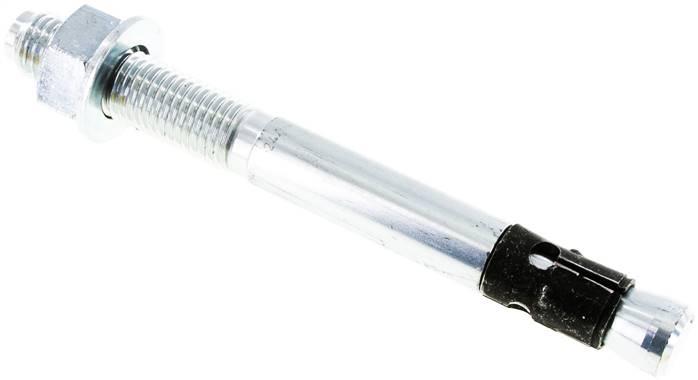

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
For mounting heavy loads in cracked concrete (tensile area) and cracked concrete (pressure zone).
Recommended torque during anchoring:
Ø 8 : 20 Nm, Ø 10 : 45 Nm, Ø 12 : 60 Nm, Ø 16 : 110 Nm, Ø 20 : 200 Nm, Ø 24 : 270 Nm
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| Bore diameter [mm] | 24 |
| Min. hole depth for through hole installation (h2) [mm] | 219 |
| min. anchoring depth (hef) [mm] | 125 |
| Anchor rod [mm] | 235 |
| Max. usable length (tfix) [mm] | 60 |
| Male thread x thread length | M 24 x 88 |
Further information:
| {{ $t('shop.all.gewicht') }} | 900 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571843533 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73181900 |
| {{ $t('shop.all.hersteller') }} | Fischer |
Figure
Drawing:
Drawing: Fischer FAZ II Plus heavy-duty anchor bolt
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number DUBEL FAZ 24/60.
