Data sheet

MULTIFIX filter, G 1/2", model series. 2, Plastic container
{{ $t('shop.all.artikelnummer') }}:
F 12

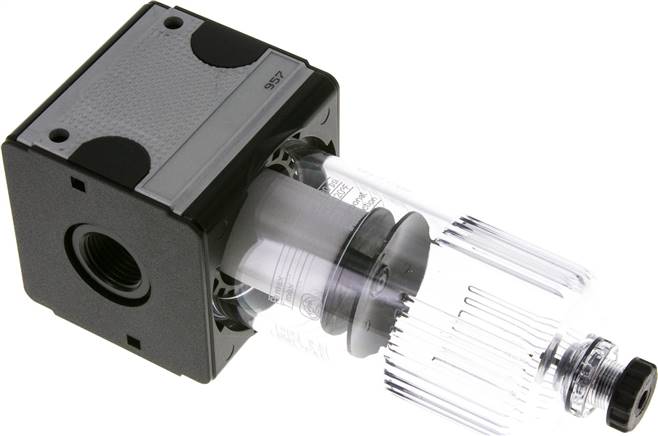

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Version:
Filtering using the centrifugal principal and sintered filter
Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), seals: NBR, condensate container: polycarbonate
Temperature range:
-10 to +60 °C
Pore width in the filter:
5 µm (model series 5: 40 µm)
Erreichbare Druckluftqualität (ISO 8573-1):
[6:4:4] (ohne Kältetrockner: [6:7:4]), Baureihe 5: [7:4:4] (ohne Kältetrockner: [7:7:4])
Condensate draining:
semi-automatic**
Media:
Compressed air, neutral gases
Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.
Input pressure:
1.5 - 16 bar (with metal bowl max. 20 bar*)
Max. condensate amount:
50 cm³
Flow:
5850 l/min
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU
Optional:
Version with protective cage -S, Version with metal bowl* and inspection tube -M, automatic discharge -AM, automatic discharge closed when not pressurised (0 to 16 bar) -AMNC
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Thread G 1/2"
Container design Plastic container
Condensate drain Semi-automatic
Mounting brackets W 2
Coupling kit KP 2
Replacement filter 5 µm FILTER 2
input pressure [bar] 1,5 - 16
Further information:
{{ $t('shop.all.gewicht') }} 750 g / pcs
{{ $t('shop.all.gtin') }} 4050571291532
{{ $t('shop.display.artikel.zollwarennummer') }} 84213925
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number F 12.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
