Data sheet
VAME-S7-P-N-V14-A (3581412) Mounting plate
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO070125

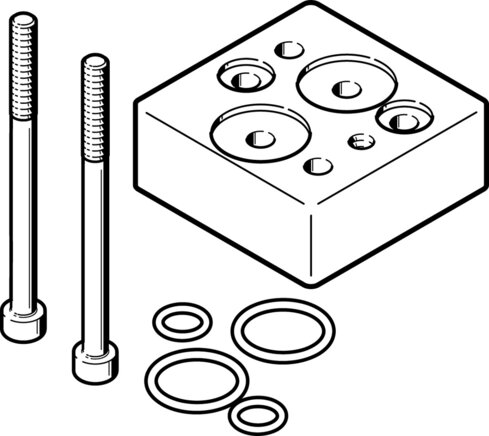

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material information |
LABS containing materials included, RoHs compliant |
| Corrosion resistant class KBK | 4 - particularly severe corrosion stress |
| installation position | arbitrary |
| Operating pressure [bar] | 0 to 10 |
| Operating pressure [psi] [psi] | 0 to 145 |
| Operating medium | Compressed air to ISO8573-1:2010 [-:-:-] |
| Protection category | IP65 |
| Fastening type | With throughway bores |
| Pneumatic connection 1 |
M5, NAMUR wiring diagram |
| Pneumatic connection 2 |
NAMUR wiring diagram, Flange 1/4 |
| Pneumatic connection 3 | G1/4 |
| Seals material | NBR |
| Plate material | Aluminium ematal coated |
Further information:
| {{ $t('shop.all.gewicht') }} | 145 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568271510 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84819000 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number OT-FESTO070125.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
