Data sheet

T-groove (5mm) cylinder switch, fully electronic sensor (reverse polarity protection)
{{ $t('shop.all.artikelnummer') }}:
ZSA 33-M8

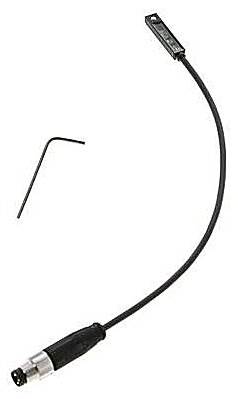

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: plastic, threaded part: brass, screw: Stainless steel
Connecting line:
PUR cable
Protection class:
IP 67
Temperature range:
-20 to +70 °C
Note:
The proximity switch with light emitting diode is used for the contactless position indicator of cylinders with magnetic pistons. It is mounted by pushing it in the T-groove of the cylinder and locking it using the threaded rod.
Suitable:
For cylinders with continuous T groove (5 mm)
Advantages:
•no mounting material required,
•one switch fits many products of most European brands (e.g. Festo).
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version fully electronic sensor (reverse polarity protection)
Operating voltage 10 - 30 V (DC)
Switching NO contact (PNP)
Max. switching current [mA] 130
Max. capacity 4 W
Connecting line 0.2 m, 3x 0.14 mm² with M 8 plug (3-pin)
Further information:
{{ $t('shop.all.gewicht') }} 21 g / pcs
{{ $t('shop.all.gtin') }} 4050571817169
{{ $t('shop.display.artikel.zollwarennummer') }} 85365019
Figure
Drawing:
Drawing: T-groove
Drawing: Sensor dimensions
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number ZSA 33-M8.
