Data sheet
CACR-LE2-6-W60 (8047913) braking resistor
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO070592

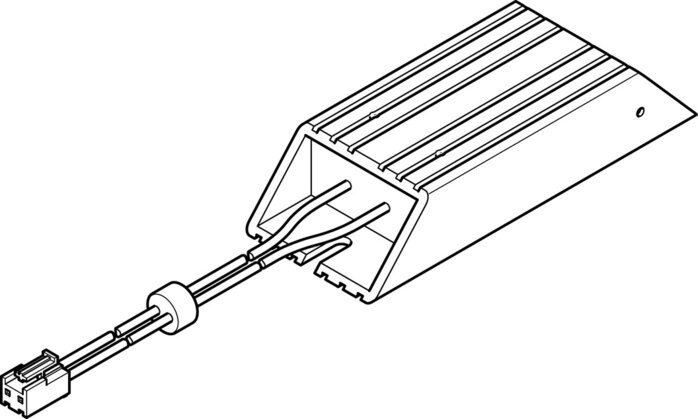

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| size | 60 |
| installation position |
Open convection, vertical, Horizontal |
| Power at 35% ED and 20°C [W] | 180 |
| Nominal performance braking resistance [W] | 60 |
| Resistance value [Ohm] | 6 |
| Permission | c UL us - Recognized (OL) |
| Protection category | IP65 |
| ambient temperature [°C] | 0 to 50 |
| Fastening type | With throughway bores |
| Material information |
LABS containing materials included, RoHs compliant |
Further information:
| {{ $t('shop.all.gewicht') }} | 140 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568287795 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85332900 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number OT-FESTO070592.
