Data sheet
Safety coupling socket (NW7,2) 9 (3/8")mm hose m. HSV
{{ $t('shop.all.artikelnummer') }}:
KDSSI 9 NW7 HSV

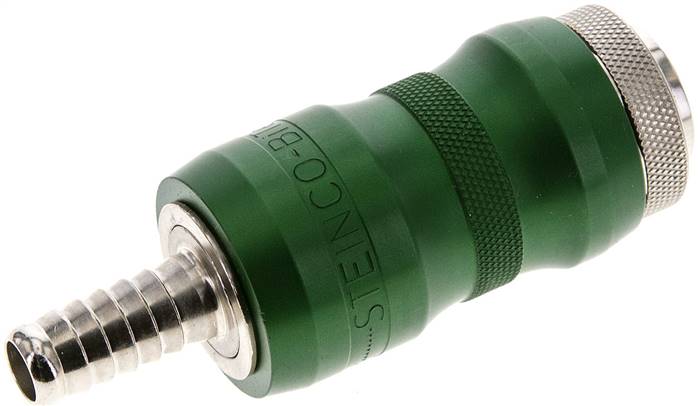

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated brass/hardened steel, sliding sleeve: anodized aluminium, seal: NBR
Temperature range:
-20 to +100 °C
Operating pressure:
0 to 20 bar
Flow*:
2050 l/min
Function:
This safety coupling is a combination of a manual slide valve and the quick coupling. The coupling opens only when the plug side is vented through the sliding sleeve. The sliding sleeve can be moved only in the coupled state and functions like a 3/2-way manual slide valve.
Compatible with**:
Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E ... 07), Festo (KD4 / KS4 / NPHS), IMI-Norgren (238), Aventics (CP1-NW 7 / 7.8) and many other German brands
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Hose diameter (inner) [mm] | 9 (3/8") |
| actual nominal width [mm] | 7,8 |
Further information:
| {{ $t('shop.all.gewicht') }} | 155 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571853884 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KDSSI 9 NW7 HSV.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
