Data sheet KLOR 112 HY – CSM (Hypalon) replacement seal f. Kamlock coupling DN40 (1-1/2")

Data sheet

CSM (Hypalon) replacement seal f. Kamlock coupling DN40 (1-1/2")

{{ $t('shop.all.artikelnummer') }}:

KLOR 112 HY

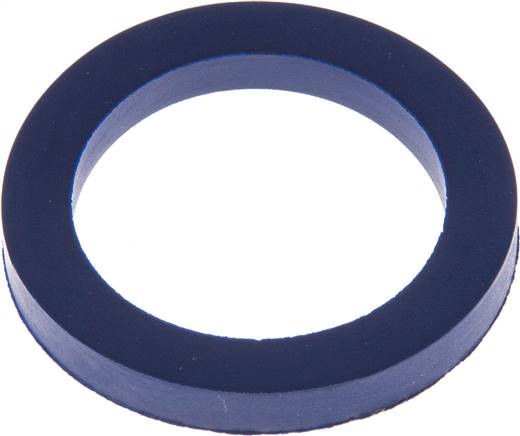

Example illustration

Materials:

NBR: (-10°C to +80°C) elastic standard material for neutral media such as air, oil and water. Good resistance to mechanical loads, EPDM: (-20°C to +130°C) elastic, resistance to alkaline solutions and acids of average concentration, water, hot water and steam. Not resistance to oils and greases, FKM: (-20°C to +180°C) elastic, elastomer with high temperature and weather resistance. Suitable for many acids, bases, fuels and oils (also synthetic). Not resistant to hot water and steam, CSM (Hypalon): (-40°C to +140°C) elastic and with good chemical resistance,

PTFE*: (-180°C to +200°C) very stiff and very good chemical resistance (install carefully). Resistant against almost all chemicals, even at high temperatures, NBR / PTFE: (-10°C to +80°C) elastic and with very good chemical resistance, FKM / PTFE: (-20°C to +180°C) elastic and with very good chemical resistance,

Version	solid material
Material	CSM (Hypalon)
DN [mm]	40 (1-1/2")
Outer diameter (approx.) [mm]	56
Thickness [mm]	6,4
Temperature range [°C]	-40 to +140

Further information:

{{ $t('shop.all.gewicht') }}	11 g / pcs
{{ $t('shop.all.gtin') }}	4050571434182
{{ $t('shop.display.artikel.zollwarennummer') }}	40169300
{{ $t('shop.display.artikel.rohskonform') }}	{{ $t('shop.all.ja') }}

Figure

Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.

As of: 08.12.2025
