Data sheet

Signal interrupter G 1/8", Series Standard
{{ $t('shop.all.artikelnummer') }}:
SU 18 310 B

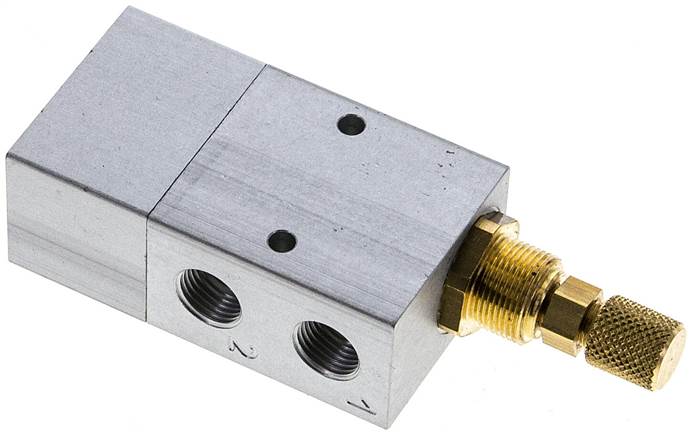

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: anodized aluminium, internal parts: aluminium and stainless steel (standard design: brass). Seals: plastic and NBR
Media:
oiled and unoiled filtered compressed air
Function:
This valve interrupts a continuous signal, so that from a continuous signal at the inlet connection 1, there is only a short pulse at output 2. A signal arriving at 1 has an uninterrupted flow up to output 2. When the pulse duration elapses, connection is 1 blocked and output 2 deaerates towards 3.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version Standard
Thread (2x) G 1/8"
Pulse duration [s] 0 - 10 (adjustable)
Operating pressure [bar] 2 - 10
Temperature range [°C] -10 to +60
Further information:
{{ $t('shop.all.gewicht') }} 110 g / pcs
{{ $t('shop.all.gtin') }} 4050571649500
{{ $t('shop.display.artikel.zollwarennummer') }} 84814090
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number SU 18 310 B.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
