Data sheet
temperature switch (Closer (NO)), Stainless steel, +100°C
{{ $t('shop.all.artikelnummer') }}:
TS 34S100 ES

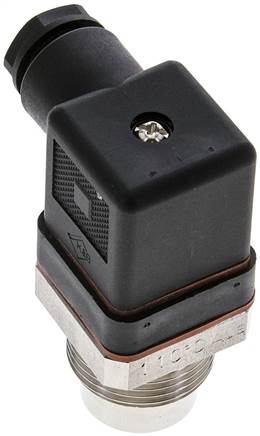

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Temperature range:
+30 to +120 °C
Protection class:
IP 65, control output: max. 250 V AC, 30 V DC (0.1 to 4 A)
Electrical connection:
Right-angle connector installation size 3, 3-pole (DIN 43650 / EN 175301-803 A) (Flat pin)
Switching hysteresis:
max. 20 K
Connection:
G 3/4"
Optional:
Signal lamp in the plug (24 V DC, 0.1 - 1 A) -SL24, Signal lamp in the plug (230 V AC, 0.1 - 1 A) -SL220
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Stainless steel |
| Type of contact | NO contact |
| Switch point [°C] | +100 |
| Version | Standard |
Further information:
| {{ $t('shop.all.gewicht') }} | 120 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571703899 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 90321080 |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number TS 34S100 ES.
