Data sheet

Bimetallic thermometer, vert-ical D63/-20 to +60°C/100mm
{{ $t('shop.all.artikelnummer') }}:
TS 2663100 ES

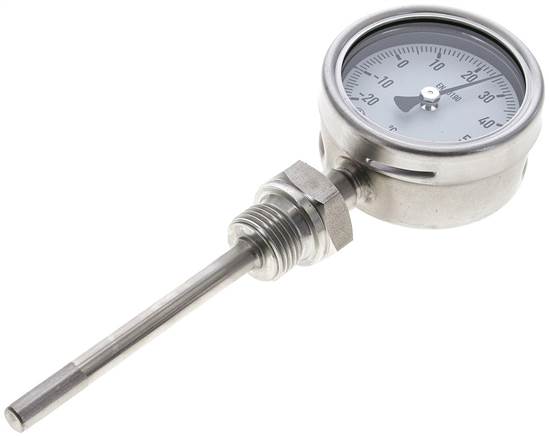

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
Premium thermometers for aggressive media in chemistry, petrochemical engineering and process engineering. Also for device engineering, food industry or the like. The devices meet the highest metrological requirements in harsh environments and also tolerate excess temperatures.
Materials:
Housing: 1.4301, stem: 1.4571, window: instrument plate glass
Display correction:
Indicator with micro-adjustment
Protection class:
IP 65
Protective tube connection:
G 1/2" (thermowell model B)
Dip shaft Ø:
8 mm
Class:
1
Temperature range:
Environment: -40 to +70 °C
Operating pressure at the stem:
max. 25 bar
Note:
WIKA Type R55
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Diameter [mm] 63
Display range [°C] -20 to +60
Stem length L [mm] 100
Scale division [K] 1
Overtemperature resistant up to [°C] 120
F [mm] 57
G [mm] 35
Further information:
{{ $t('shop.all.gewicht') }} 250 g / pcs
{{ $t('shop.all.gtin') }} 4050571703042
{{ $t('shop.display.artikel.zollwarennummer') }} 90251900
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} WIKA (WEEE DE92770372)
Figure
Drawing:
Drawing: Vertical bimetal thermometer without thermowell, chemical version
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number TS 2663100 ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
