Data sheet
Banjo bolt 1-fold, M 18x1,5, zinc plated steel
{{ $t('shop.all.artikelnummer') }}:
891 1300

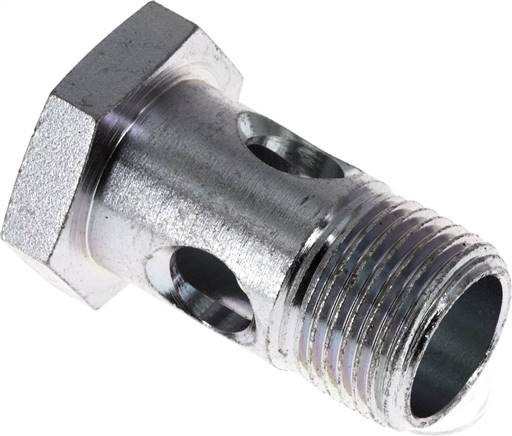

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Zinc plated steel
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Thread | M 18x1,5 |
| suitable for diameter ring [mm] | 18 |
| L [mm] | 32 |
| SW [mm] | 24 |
Further information:
| {{ $t('shop.all.gewicht') }} | 47 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571212360 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73181575 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number 891 1300.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
