Data sheet
Hydraulic gasket assortment, 8 dimensions from M8 to M22
{{ $t('shop.all.artikelnummer') }}:
DRHD SORTI 145

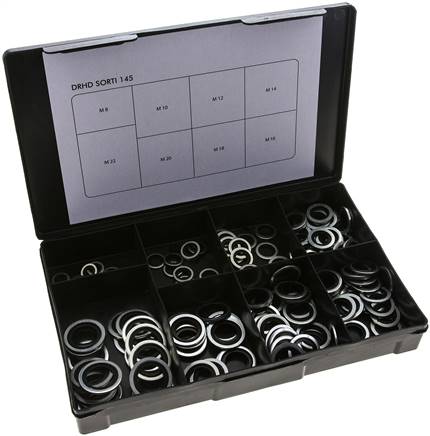

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Zinc plated steel, with NBR insert
Temperature range:
-30 to +100 °C
Operating pressure:
up to 400 bar, can be used up to 1000 bar when lowered to sealing surface
Advantages:
•after attaching to the thread, the gasket is held in place by the retaining lip,
•Sealing effect regardless of tightening torque,
•relative resistant to heavy tightening of a screw connection
•Sealing effect regardless of tightening torque,
•relative resistant to heavy tightening of a screw connection
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Contents [PCE] | 145 |
| Dimensions | 8 dimensions from M8 to M22 |
Further information:
| {{ $t('shop.all.gewicht') }} | 600 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571269852 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84842000 |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number DRHD SORTI 145.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
