Data sheet
Brass angle ball valve, G 3/4" (male thread / female thread),PN 20
{{ $t('shop.all.artikelnummer') }}:
KHW 34 IA

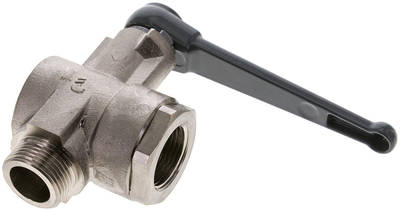

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated brass, ball: polished brass, seal: PA / NBR
Temperature range:
-20 to +80 °C
Media:
Water (no steam), neutral, gaseous and non-aggressive, liquid media, mineral oils, compressed air, vacuum (max. -0.98 bar)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| G (male thread) | G 3/4" |
| G (female thread) | G 3/4" |
| DN [mm] | 18 |
| PN [bar] | -0.98 to 20 |
| L [mm] | 60 |
| L1 [mm] | 39 |
| H [mm] | 51 |
| H1 [mm] | 37 |
| R [mm] | 108 |
Further information:
| {{ $t('shop.all.gewicht') }} | 700 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571427917 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84818081 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Screw-in angle ball valve
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KHW 34 IA.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
