Data sheet
Safety hose clamp malleable cast iron zinc-plated, 60 to 73mm
{{ $t('shop.all.artikelnummer') }}:
SL 73 SB

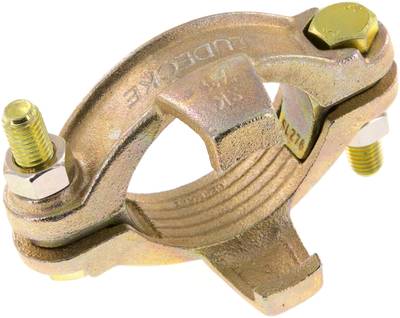

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Malleable cast iron, zinc plated
Advantages:
•high clamping strength - even hose clamping from all sides from the laterally free tongues,
•additional security from the safety catches in conjunction with the hose fittings with safety collars
•additional security from the safety catches in conjunction with the hose fittings with safety collars
Warning:
The claws should be at least 3 mm in the insert. Check during assembly!
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Hose diameter (inner) [mm] | 50 (2") |
| E [mm] | 54,0 - 67,0 |
| Diameter clamping range [mm] | 60 - 73 |
Further information:
| {{ $t('shop.all.gewicht') }} | 650 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571630980 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73259990 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number SL 73 SB.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
