Data sheet

Steel cable clamp f. 30,0mm cable, M 16,B=48, Zinc plated steel
{{ $t('shop.all.artikelnummer') }}:
DSK 30

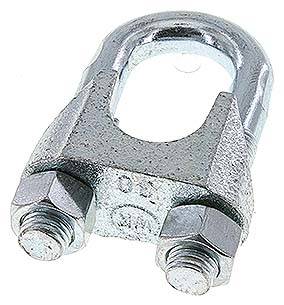

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Suitable:
Steel cable clamps are designed for the manufacture of removable cable-end connections.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material Zinc plated steel
for rope diameter [mm] 30,0
G M 16
H [mm] 110
B [mm] 48
Further information:
{{ $t('shop.all.gewicht') }} 600 g / pcs
{{ $t('shop.all.gtin') }} 4050571275181
{{ $t('shop.display.artikel.zollwarennummer') }} 74122000
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Wire rope clamp
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number DSK 30.
