Data sheet
HD closing plug hexagon socket. UN 1-3/16"-12, Zinc plated steel
{{ $t('shop.all.artikelnummer') }}:
VSTI 13/16 UNF

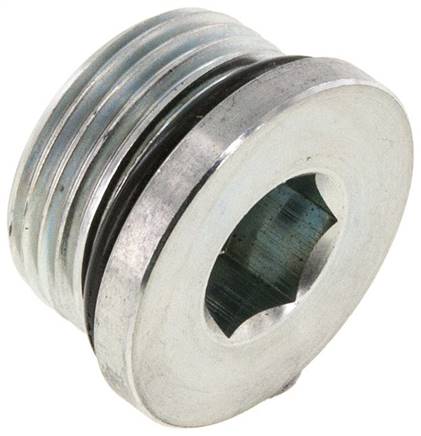

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Seal: NBR (V4A: FKM)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| Thread | UN 1-3/16"-12 |
| PN* [bar] | 400 |
| Temperature range [°C] | -25 to +100 |
Further information:
| {{ $t('shop.all.gewicht') }} | 95 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571728021 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73269098 |
Figure
Drawing:
Drawing: Closing plug with hexagon socket, UNF thread
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number VSTI 13/16 UNF.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
