Data sheet
Washer, DIN 125 A, M 18 (19x34mm), Stainless steel A4
{{ $t('shop.all.artikelnummer') }}:
125A-18 ES4A

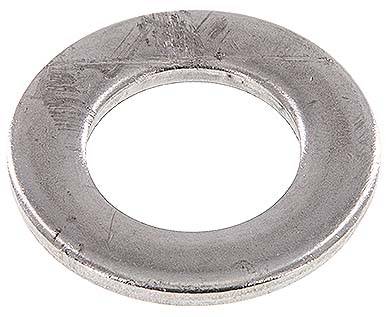

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Optional:
Stainless steel A4 -ES4A
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Stainless steel A4 |
| for screws | M 18 |
| Inner diameter D [mm] | 19 |
| Outer diameter D1 [mm] | 34 |
| Strength S [mm] | 3 |
Further information:
| {{ $t('shop.all.gewicht') }} | 13 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571864262 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73181900 |
Figure
Drawing:
Drawing: Unchamfered washer DIN 125 A / ISO 7089
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number 125A-18 ES4A.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
