Data sheet

Padlock size 30 with 2 keys simultaneous locking with A closure
{{ $t('shop.all.artikelnummer') }}:
VHS 30 H-GSA

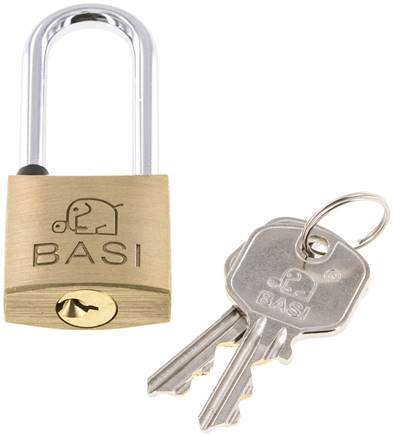

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: brass, bracket: steel (hardened), internal parts: steel
Scope of delivery:
Cylinder padlock with 2 keys
Optional:
Simultaneous locking* with closure A -GSA, Simultaneous locking* with closure B -GSB
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version High bracket
Type of closure simultaneous locking with A closure
S [mm] 30
Bracket thickness (diameter) [mm] 5,0
A [mm] 16
B [mm] 40
C [mm] 32
Further information:
{{ $t('shop.all.gewicht') }} 110 g / pcs
{{ $t('shop.all.gtin') }} 4050571865665
{{ $t('shop.display.artikel.zollwarennummer') }} 83017000
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number VHS 30 H-GSA.
