Data sheet

Compact carriage, piston 20mm,stroke 40mm
{{ $t('shop.all.artikelnummer') }}:
EXH 20/40

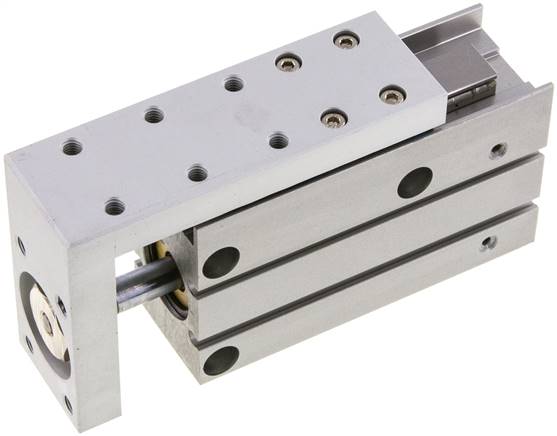

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and plate: Anodized aluminium, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gaskets: NBR / PUR
Temperature range:
-10 to +70 °C
Operating pressure:
max. 7 bar
Permitted kinetic energy:
Ø 6: 12.5 mJ, Ø 10: 25 mJ, Ø 16: 50 mJ, Ø 20: 100mJ
Version:
With Magnetic piston
Cylinder switch type:
D
Advantages:
•high stiffness,
•compressed air connection possible from three sides,
•numerous mounting options,
•main mounting dimensions identical to SMC series MXH
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Piston diameter [mm] 20
Stroke [mm] 40
Version Compact sled
P (compressed air port) M 5
Repair sets EXH 20 REP
A [mm] 10
B [mm] 15
C [mm] 20
D [mm] 14,0
E [mm] 6
F [mm] 52,5
G [mm] 68,0
H [mm] 11,0
I [mm] 6,0
J [mm] 6x
K [mm] 34
L [mm] 7,0
LA [mm] 20
LB [mm] 20
LT [mm] 94
M [mm] 32
N [mm] 54,0
NS [mm] 50
O [mm] 9,5
P1 M 5
P2 M 5
P3 M 5
P4 M 6
P5 [mm] 9.3 (8.0 deep)
P6 [mm] 5,1
Q1 [mm] 32
Q2 [mm] 64,5
R1 [mm] 20
R2 [mm] 34
S [mm] 63,5
S1 [mm] 8
S2 [mm] 11,0
S3 [mm] 9,5
T [mm] 24,5
U [mm] 20,0
V [mm] 6,0
W [mm] 34
X [mm] 14
Y [mm] 31
Z [mm] 20
Further information:
{{ $t('shop.all.gewicht') }} 600 g / pcs
{{ $t('shop.all.gtin') }} 4050571871499
{{ $t('shop.display.artikel.zollwarennummer') }} 84123100
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} EMC
Figure
Drawing:
Drawing: Compact slide
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number EXH 20/40.
