Data sheet
Parallel gripper, pistons 10mm, single acting - closed when not pressurised (internal grab)
{{ $t('shop.all.artikelnummer') }}:
SHZ 10 FS

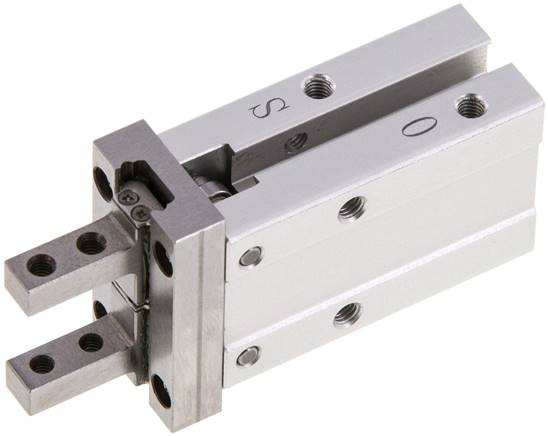

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: Anodized aluminium / galvanized steel / stainless steel, piston: Aluminium / stainless steel, gripper finger and ball guide: hardened stainless steel, seals: NBR / PUR
Temperature range:
-10 to +60 °C
Operating pressure:
max. 7 bar
Maximum working frequency:
180 cycles / minute
Repeatability:
± 0,01 mm
Version:
With Magnetic piston
Cylinder switch type:
F or D (cylinder switch type D not for Ø 10)
Advantages:
•ideal for Pick and Place applications,
•high repeatability (± 0.01 mm),
•guidance through stable ball guide,
•precise reinstallation due to front centring bore and tolerance bore,
•many mounting variants possible,
•main mounting dimensions identical to SMC series MHZ2
•high repeatability (± 0.01 mm),
•guidance through stable ball guide,
•precise reinstallation due to front centring bore and tolerance bore,
•many mounting variants possible,
•main mounting dimensions identical to SMC series MHZ2
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | single acting - closed when not pressurised (internal grab) |
| Piston diameter [mm] | 10 |
| Gripper path [mm] | 3,4 |
| Eff. holding force* grips inside [N] | 13 |
| Z (compressed air port) | M 3 |
| Repair sets | SHZ 10 REP |
| A [mm] | 23,0 |
| B [mm] | 37,6 |
| C [mm] | 6,0 |
| D [mm] | 12,3 |
| E [mm] | 57,0 |
| F [mm] | 29 |
| G (+0 / -0,05) [mm] | 4 |
| H [mm] | 23,0 |
| I [mm] | 16 |
| J [mm] | 18 |
| K [mm] | 12 |
| L [mm] | 16,4 |
| M (+0,05 / -0) [mm] | 11 (2.0 deep) |
| O [mm] | 7,0 |
| P [mm] | 18,8 |
| Q [mm] | 10,0 |
| K1 [mm] | 7,6 |
| K2 [mm] | 5,2 |
| K3 (+0,05 / -0) [mm] | 2 (3 deep) |
| R [mm] | 11,4 |
| S [mm] | 27,0 |
| U | M 2,5 |
| V (+0 / -0,05) [mm] | 5 |
| W [mm] | 3 |
| X [mm] | 5,7 |
| Y | M 3 |
| Y1 [mm] | 6,0 |
| Y2 [mm] | 6,0 |
| Y3 [mm] | 6 |
| Y4 [mm] | 2,6 |
| OP (+2 / -0) [mm] | 14,8 |
| CL (+0 / -0,7) [mm] | 11,4 |
Further information:
| {{ $t('shop.all.gewicht') }} | 65 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571871635 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84123100 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | EMC |
Figure
Drawing:
Drawing: Parallel gripper with ball guide
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number SHZ 10 FS.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
