Data sheet

ISO 15552-90° loop strap swivel mounting 50 mm, Burnished steel
{{ $t('shop.all.artikelnummer') }}:
TD 50 ST

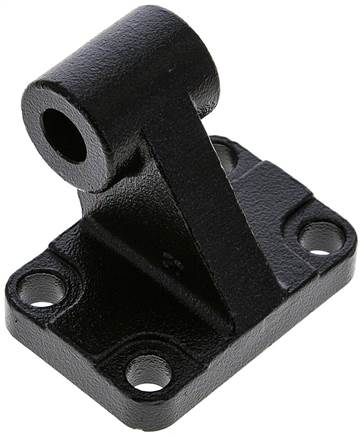

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material Burnished steel
for piston diameter [mm] 50
B [mm] 32
D [mm] 12
G [mm] 33
H [mm] 45
K [mm] 12
M [mm] 65
N [mm] 50
S [mm] 9,0
W1 [mm] 30
W2 [mm] 45
Further information:
{{ $t('shop.all.gewicht') }} 410 g / pcs
{{ $t('shop.all.gtin') }} 4050571872922
{{ $t('shop.display.artikel.zollwarennummer') }} 73269098
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Swivel mounting 90° bracket
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number TD 50 ST.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
