Data sheet
fixed halves (EDBRO-coupling size3/4")
{{ $t('shop.all.artikelnummer') }}:
EDBRF 34

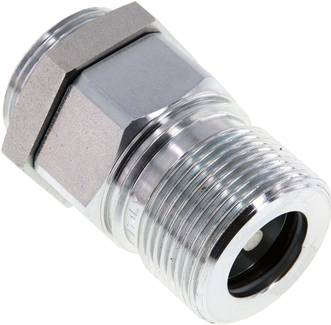

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Function:
Quick fastener screw couplings shut off on the plug and the sleeve when uncoupled. The connection of the coupling sleeve and coupling plug is carried out via a screw connection with hand nut. During the coupling procedure, the valve chamber is sealed before the valves open. When uncoupling, the valves are already closed, before the connection can be pulled out of the seal.
Materials:
Body, dust protection and chain: Zinc plated steel; seal: NBR
Temperature range:
-25 to +100 °C
Bulkhead thread (only fixed halves):
G 1-1/4" (41.9 mm), max. bulkhead thickness: 10 (EDBRF 10: 16)
Suitable:
Vehicle hydraulics, such as tippers, silo vehicles, construction machines, etc.
Advantages:
•secure against pressure thrusts and pressure vibrations,
•streamlining design of the flow rate range,
•fixed halves designed as bulkhead design,
•compatible with many other products (e.g. EDBRO or Faster type CVE)
•streamlining design of the flow rate range,
•fixed halves designed as bulkhead design,
•compatible with many other products (e.g. EDBRO or Faster type CVE)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | fixed halves |
| Thread internal | G 3/4" |
| Coupling threads | UNS 1-3/4"-10 (Ø 44.5) |
| size | 3/4" |
| PN [bar] | 350 |
| Dust protection | EDBRF 34 STAUB |
Further information:
| {{ $t('shop.all.gewicht') }} | 700 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571874094 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73269098 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number EDBRF 34.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
