Data sheet
Welding sleeve Rp 2"-26mm, 1.4571 (DIN2986-half)
{{ $t('shop.all.artikelnummer') }}:
MURH 20 AS ES

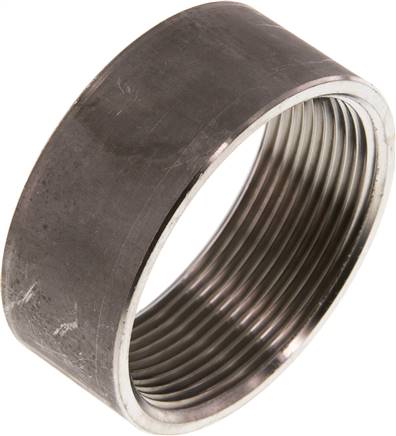

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | 1.4571 |
| length | half |
| L [mm] | 26 |
| D [mm] | 66,2 |
| Thread | Rp 2" |
Further information:
| {{ $t('shop.all.gewicht') }} | 165 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571510169 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73072100 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number MURH 20 AS ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
