Data sheet
Y-push in fitting10mm, IQS-LE (EPDM-seal)
{{ $t('shop.all.artikelnummer') }}:
IQSY 100 LE

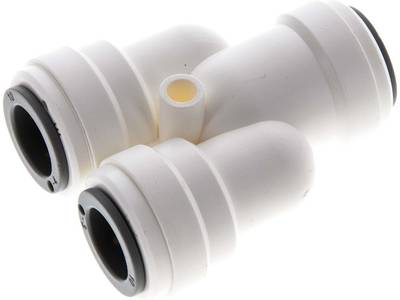

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and sleeve: POM (FDA 21 CFR 177.2470, NSF/ANSI 51 & 61), retaining claw: stainless steel, seals: EPDM (FDA 21 CFR 177.2600), lubricant: Silicone grease (NSF/ANSI 51 & 61)
Temperature range:
0 to +65 °C
Operating pressure:
-0.95 to 16 bar (Ø 3/8", 1/2", 10 mm & 12 mm: max. 11 bar)*
Media:
unoiled compressed air, water, liquid foodstuffs, non-hazardous gases and liquids (no mineral oils), mild chemicals
Approvals:
Materials according to FDA & NSF/ANSI
Advantages:
•available for metric and imperial hoses, G thread,
•R-thread and NPT-thread available,
•compatible with many other manufacturers
•R-thread and NPT-thread available,
•compatible with many other manufacturers
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| D [mm] | 10 |
| Operating pressure [bar] | -0.95 to 11 |
Further information:
| {{ $t('shop.all.gewicht') }} | 17 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571922702 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 39174000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Sang-A |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number IQSY 100 LE.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
