Data sheet
Reducing nipple UN 1-5/8"-12(JIC male thread)-G 1"(Female thread), Zinc plated steel
{{ $t('shop.all.artikelnummer') }}:
RN 15/8-10

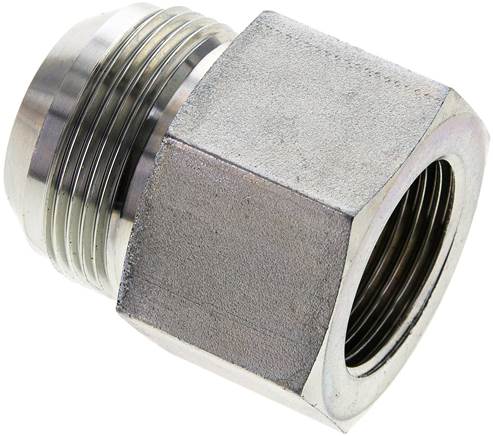

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| Thread external | UN 1-5/8"-12 |
| Thread internal | G 1" |
| PN* [bar] | 140 |
Further information:
| {{ $t('shop.all.gewicht') }} | 400 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571593209 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73269098 |
Figure
Drawing:
Drawing: Reducing nipple with JIC thread (male) / G-thread
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number RN 15/8-10.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
