Data sheet
Double nipple (dairy thread) Rd 95 x 1/6"-Rd 78 x 1/6"
{{ $t('shop.all.artikelnummer') }}:
DNMA 65/50 ES

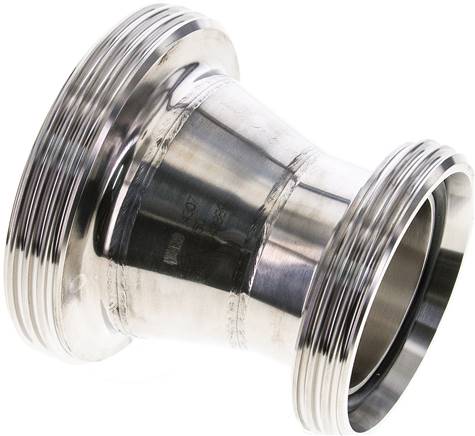

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Suitable:
Connects hoses and pipes with union nuts.
Materials:
1.4301, seal: EPDM (FDA 21 CFR 177.2600 and (EC) 1935/2004)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | 1.4301 |
| RD1 | Rd 95 x 1/6" |
| RD2 | Rd 78 x 1/6" |
| DN1 [mm] | 65 |
| DN2 [mm] | 50 |
| L [mm] | 89 |
Further information:
| {{ $t('shop.all.gewicht') }} | 600 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571259907 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73072910 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number DNMA 65/50 ES.
