Data sheet
clamps 39 to 41mm, 1.4401, EN 14423 (DIN2826)
{{ $t('shop.all.artikelnummer') }}:
SSA 40 HD ES

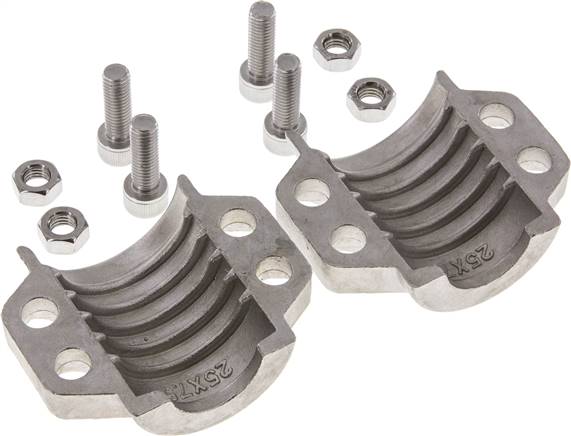

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Suitable:
Safety clamp fittings for steam hoses in accordance with EN ISO 6134
Temperature range:
Saturated steam max. +210 °C, water up to +120°C
Operating pressure:
18 bar
Warning:
Please note the burst strength of the hose at the operating temperature!
Scope of delivery:
2 shell halves with 4 screws
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | 1.4401 |
| Hose diameter (inner x outside) [mm] | 25x40 |
| Diameter clamping range [mm] | 39 - 41 |
Further information:
| {{ $t('shop.all.gewicht') }} | 600 g / pair |
| {{ $t('shop.all.gtin') }} | 4050571640415 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73269098 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number SSA 40 HD ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
