Data sheet

Hose screw connection, DIN EN 14423 G 1-1/4"-32x48mm, 1.4301
{{ $t('shop.all.artikelnummer') }}:
STD 11432 ES

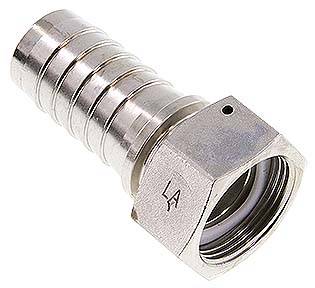

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Temperature range:
Saturated steam max. +210 °C, water up to +120°C
Operating pressure:
18 bar
Scope of delivery:
incl. flat seal, heat resistant seal (Type 1.4301: PTFE)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material 1.4301
Thread G 1-1/4"
Hose diameter (inner x outside) [mm] 32x48
Clamps brass SSA 48 HD MS
Clamps 1.4401 SSA 48 HD ES
Replacement seals STD DR 114 PTFE
Further information:
{{ $t('shop.all.gewicht') }} 400 g / pcs
{{ $t('shop.all.gtin') }} 4050571646370
{{ $t('shop.display.artikel.zollwarennummer') }} 73071990
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number STD 11432 ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
